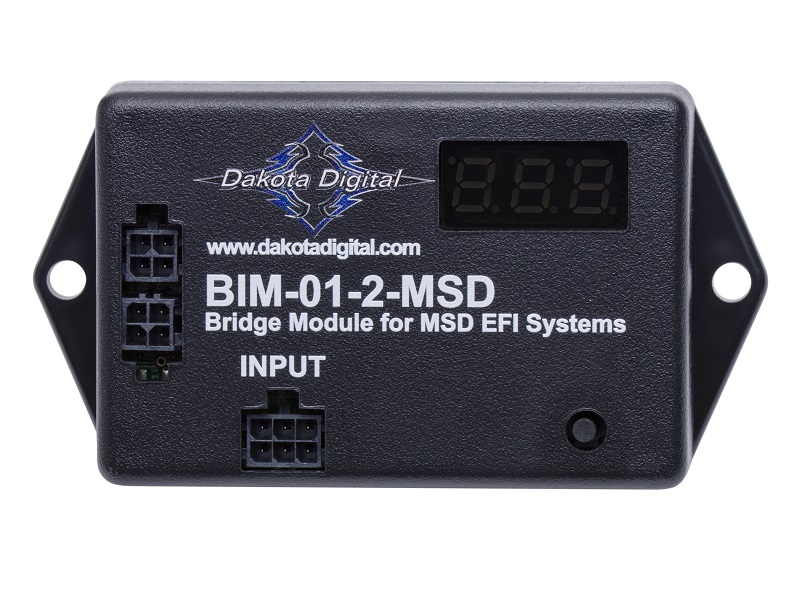

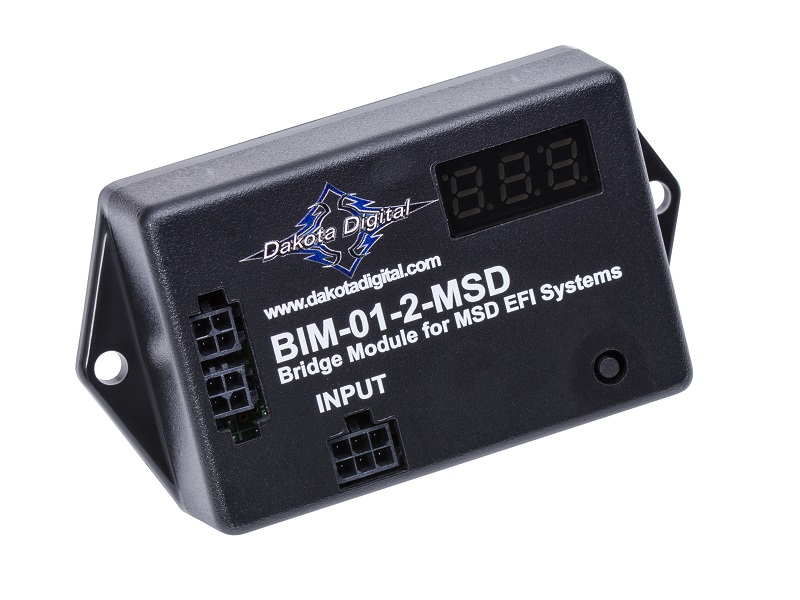

Dakota Digital MSD Atomic EFI TBI Interface Expansion Module - BIM-01-2-MSD
The BIM-01-2-MSD is designed to read the engine information from the MSD Atomic TBI EFI kits. The BIM-01-2-MSD module is a direct plug in using the supplied y-adaptor harness for simple connection to the MSD Atomic handheld display or throttle body.
**Not compatible with the Atomic LS EFI.
The BIM-01-2-MSD will collect and output the following information to Dakota Digital Instrument Systems*:
Always available:
- Tachometer
- Engine Coolant Temp
- Intake/ Manifold Temp.
- Fuel Pressure
- Air/ Fuel Ratio
Please note: Due to the various factory and modified ECM's, additional data add-on's from MSD may be available such as Oil Pressure. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp., Intake Temp., Fuel Pressure Pressure, Oil Pressure, or Air/ Fuel ratio displays since this is a function of the ECM and matching OEM functional sensors.
*The BIM-01-2-MSD is designed to decode the information provided by the MSD Atomic TBI EFI kits and supply this information to the Compatible Dakota Digital instrument system: VHX, HDX, RTX and VFD3 systems with a black plastic control module.
**For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity.
