Dakota Digital 128k High Frequency GM Pulse Generator - SEN-01-128
High-Frequency GM-Style Pulse Generator
The missing piece of the increasingly popular early-GM transmission swap!
With late-model GM transmissions containing an internal speed sensor outputting 128,000 Pulses Per Mile, the stock 40-tooth (40 pulse per revolution) reluctor ring provided the factory ECM with a high frequency input. The SEN-01-128 can now recreate this missing high frequency rate when converting to an older style transmission with a mechanical speedometer output.
With a standard female 7/8” thread-on fitting, the SEN-01-128 fits all GM transmissions with a mechanical speedometer cable outlet. Removable weather-tight 10’ cable provides for simple installation and cable routing. 128,000 Pulse Per Mile Square Wave signal output is direct replacement for the stock GM internal speed sensor, allowing the ECM receive the signals it needs for proper operation.
Fits GM transmission models with 7/8” Male Threading, ie: TH350, TH400, 700r4, 2004r, etc.
The kit includes:
- Speed Pulse Generator (128000 ppm)
- Harness, 3-wire w/speed connector, 10'

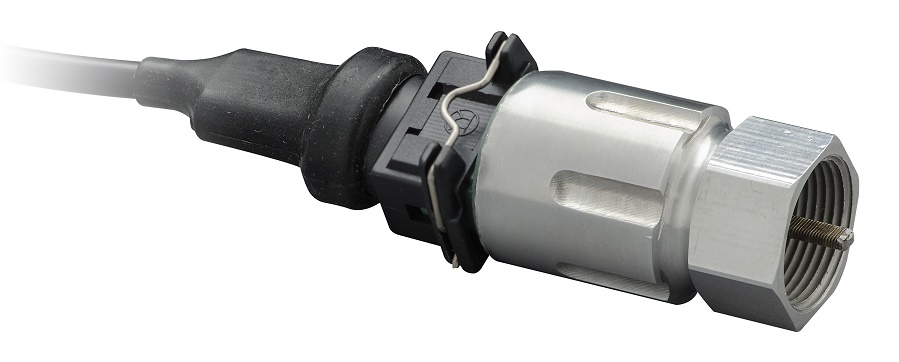

Shown Connected:
