Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

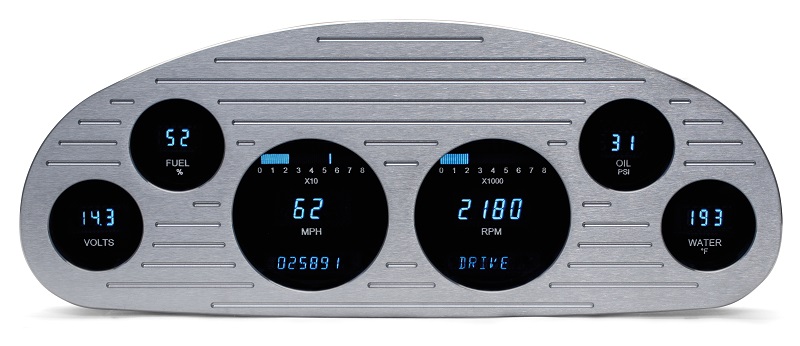

Full 6 Gauge Instrument System includes Billet Aluminum dash housing to fit 1933 and 1934 Chevy Master.

Brushed finish on panel. 14-11/16" x 5-11/16".

System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-8 weeks to build the metric version.

Please scroll through listing below for more information on the system.

---

---



---

Options available (at an additional cost):



CALG-33 - 1933 - 1934 Chevy "Master" glove box cover, available for an additional $109.25.

* Aluminum handle sold separately.

---

CALG-33-CLK - 1933 - 1934 Chevy "Master" glove box cover w/ VFD clock, available for an additional $185.25.

* VFD Display is covered by Limited Lifetime Warranty.
** See standard color options below Blue or Teal.
*** Aluminum handle sold separately.

---



ALH - Universal glove box cover handle, available for an additional $21.00.

* Some modification to aluminum glove box covers may be required.

Speedometer

0-255 MPH (optional metric version: 0-255 km/h)



Tachometer

0-17,500 RPM



Oil Temperature

0-99 PSI



Water Temperature

0-300°F (optional metric version 0-150°C)



Fuel Level

0-99%



Voltmeter

8-17 VDC



Standard Colors

Blue or Teal

Standard Displays

Odometer (One Time User Settable, Million Mile)

Dual (A/B) Trip Meter (0-9,999.9)



Performance Meters

0-60 MPH Timer (0-100 km/h)

1/4 mile time

1/4 mile end speed (trap speed)

High speed recall

High RPM recall



Gauges

Speedometer (0-255 MPH/kmh) opposite scale of main speedometer.

Indicators

Turn Signals (Left/Right)

High Beam

Check Engine

Parking Brake

Cruise Control (On / On & Engaged, when vehicle is equipped)

Gear Position (Optional GSS-3000 sensor is required, sold separately, GSS-3000 is NOT included)

4 x 4 (When vehicle is equipped)

Wait to Start (When vehicle is equipped)

Water Temperature

1/8" NPT, ground isolated sensor with a 10ft harness.



Oil Pressure

1/8" NPT, solid state sensor with a 10ft harness.



Cable Drive Speed Sensor/Generator

Replaces Ford and/or GM style speedometer cables with a 10ft harness.



Bushings

Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Push Button

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

---
