Dakota Digital 1955-1959 Chevy Pickup Digital Instrument System - VFD3-55C-PU

Name: Dakota Digital 1955-59 Chevy Pickup Truck Dash Gauge Cluster System VFD3-55C-PU
Brand: Dakota Digital
SKU: VFD3-55C-PU-B
Price: 660.25 USD
Availability: InStock

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

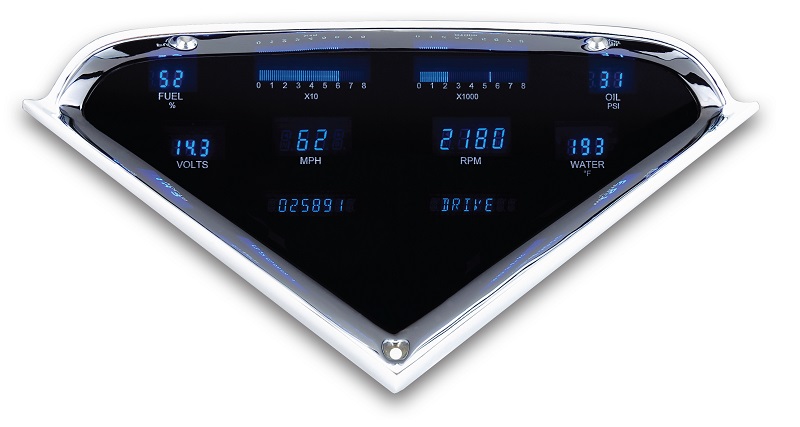

Full 6 Gauge Instrument System fits into OEM bezel for 1955- 59 Chevy Pickup.

Fits directly into existing stock bezel (Bezel is NOT included,Reproduction Bezel is Sold Separately in our store).

*Bezel is NOT included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

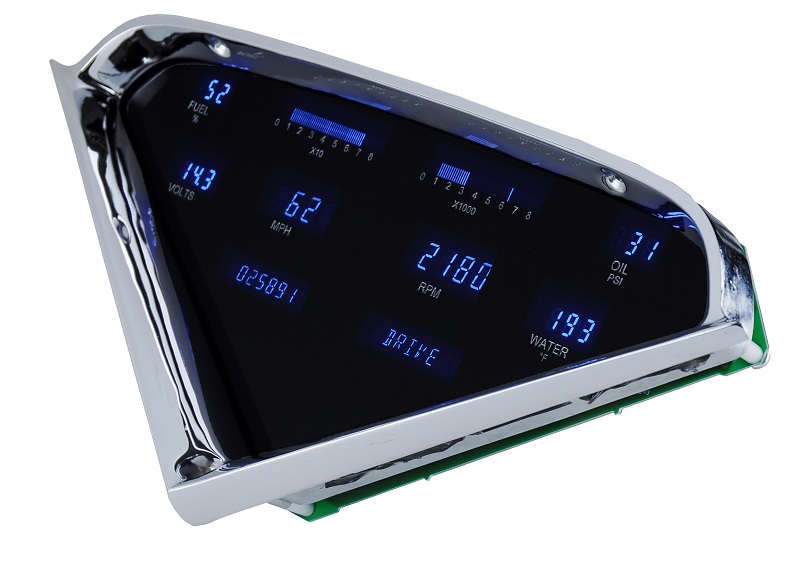

VFD3-55C-PU Side View:

System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-8 weeks to build the metric version.

Please scroll through listing below for more information on the system.

The following bezel is available for purchase separately in our store:

ICM-55C-PU - 1955- 1959 Chevy reproduction pickup bezel, available for purchase separately in our store

Specifications

Digital Gauges

Speedometer

0-255 MPH (optional metric version: 0-255 km/h)

Tachometer

0-17,500 RPM

Oil Temperature

0-99 PSI

Water Temperature

0-300°F (optional metric version 0-150°C)

Fuel Level

0-99%

Voltmeter

8-17 VDC

Standard Colors

Blue or Teal

Digital Message Centers

Standard Displays

Odometer (One Time User Settable, Million Mile)

Dual (A/B) Trip Meter (0-9,999.9)

Performance Meters

0-60 MPH Timer (0-100 km/h)

1/4 mile time

1/4 mile end speed (trap speed)

High speed recall

High RPM recall

Gauges

Speedometer (0-255 MPH/kmh) opposite scale of main speedometer.

Built-In Indicators

Indicators

Turn Signals (Left/Right)

High Beam

Check Engine

Parking Brake

Cruise Control (On / On & Engaged, when vehicle is equipped)

Gear Position (Optional GSS-3000 sensor is required, sold separately, GSS-3000 is NOT included)

4 x 4 (When vehicle is equipped)

Wait to Start (When vehicle is equipped)

VFD3 Included Sensors

Water Temperature

1/8" NPT, ground isolated sensor with a 10ft harness.

Oil Pressure

1/8" NPT, solid state sensor with a 10ft harness.

Cable Drive Speed Sensor/Generator

Replaces Ford and/or GM style speedometer cables with a 10ft harness.

Bushings

Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Push Button

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
