VFD3-64P-GTO, bezel is NOT included

Dakota Digital 1964-67 Pontiac GTO Tempest Dash Gauge Instrument System VFD3-64P-GTO

Dakota Digital

MSRP: $830.00
$788.50
(You save $41.50 )
(No reviews yet) Write a Review
SKU:
VFD3-64P-GTO-B
Condition:
New
Adding to cart… The item has been added

Dakota Digital 1964-67 Pontiac GTO, Lemans, Tempest Digital Instrument System - VFD3-64P-GTO

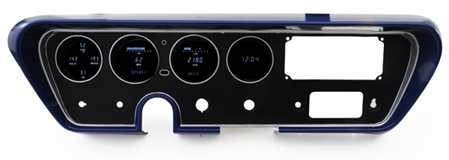

64- 65 GTO Bezel shown above
66-67 GTO Bezel shown below

66-67 Pontiac GTO also showing CLK-64P-GTO Clock (not included, can be purchased separately)

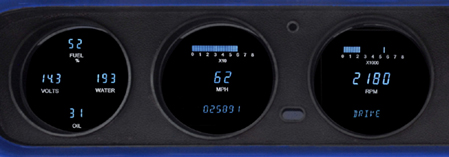

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

Full 6 Gauge Instrument System fits into OEM bezel and uses OEM mounting hardware for 1964- 67 Pontiac GTO, Lemans, Tempest.

 Fits directly into existing stock bezel (bezel is not included).

*Bezel/ Trim/ Facia not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Please note: 1st picture is shown with optional clock (sold separately), CLK-64P-GTO.

Option available at additional cost:

CLK-64P-GTO - 1964- 67 Pontiac GTO Clock, available for purchase separately in our store (pictured above in first photo).

System Includes:

  • Speedometer

  • Tachometer

  • Oil Pressure

  • Water Temperature

  • Voltmeter

  • Fuel Level

  • And Much More! (more features listed below)

VFD3 Included Sensors

System is available in MPH and degrees Fahrenheit or KM/H and degrees Celsius (metric MFD3 version). If you want to order the metric MFD3- version, please just let us know when you make your order. There is no additional cost, though it may take approx 1-8 weeks to build the metric version.

Please scroll through listing below for more information on the system.


Specifications

Digital Gauges
Speedometer
0-255 MPH (optional metric version: 0-255 km/h)

Tachometer
0-17,500 RPM

Oil Temperature
0-99 PSI

Water Temperature
0-300°F (optional metric version 0-150°C)

Fuel Level
0-99%

Voltmeter
8-17 VDC

Standard Colors
Blue or Teal
Digital Message Centers
Standard Displays
Odometer (One Time User Settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)

Performance Meters
0-60 MPH Timer (0-100 km/h)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges
Speedometer (0-255 MPH/kmh) opposite scale of main speedometer.
Built-In Indicators
Indicators
Turn Signals (Left/Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On / On & Engaged, when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor is required, sold separately, GSS-3000 is NOT included)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

VFD3 Included Sensors

Water Temperature
1/8" NPT, ground isolated sensor with a 10ft harness.

Oil Pressure
1/8" NPT, solid state sensor with a 10ft harness.

Cable Drive Speed Sensor/Generator
Replaces Ford and/or GM style speedometer cables with a 10ft harness.

Bushings
Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
Push Button
Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Limited Lifetime Warranty through manufacturer, see installation manual for details
!
