Dakota Digital 1968-69 Ford Torino VHX Instruments - VHX-68F-TOR


VHX-68F-TOR-S-B Bezel is NOT included

The first-generation Torino interior left its mark; the quad-group of round gauges creates a recognizable focal point in this full size interior.  The direct-placement VHX Series is the simplest solution available to updating the 50 year old gauges into today’s standards.  Spacer rings, cutting of the dash and fabrication are simply not required here, the VHX-68F-TOR is made directly to fit the ’68-69 Torino!

This 6-gauge system includes new, fully-machined rear gauge housings, overlaid by the stock (not included) trim bezel. Includes an analog style clock as a standard feature.

* Bezel is NOT included, bezel shown in any pic is for illustrative purposes only

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

MHX-68F-TOR Metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 8-16 weeks to build. Some systems may take a little longer due to COVID-19 and high demand affecting production.



VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F

Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

 **Not all OEM indicator lamp functions will be replaced.

  • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

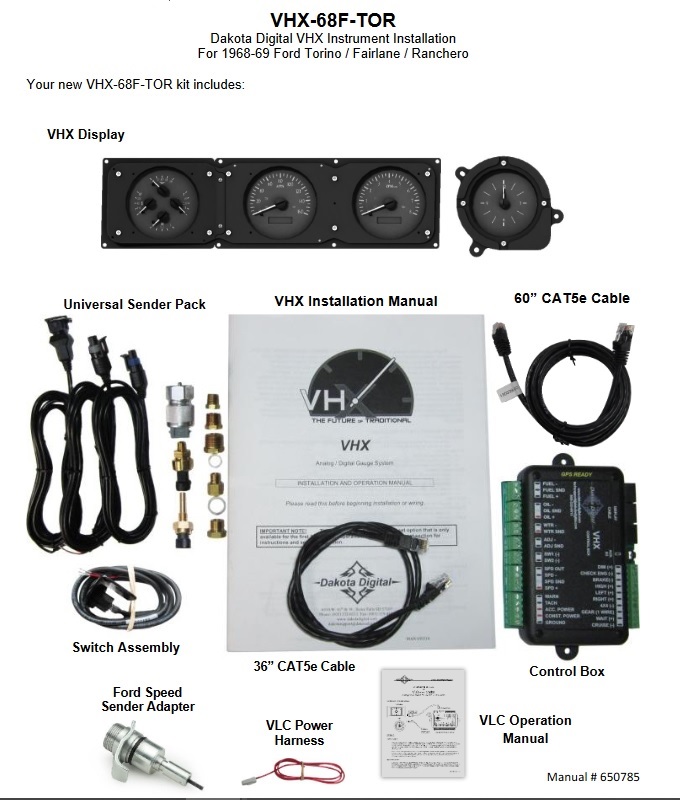

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions - 5.5" x 3.5"x 1"

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.



BIM






Here are some pics of the various style/backlighting colors available. Please note, the bezel is not included with any system, shown for illustrative purposes only.
VHX-68F-TOR with SILVER ALLOY style and BLUE backlighting:

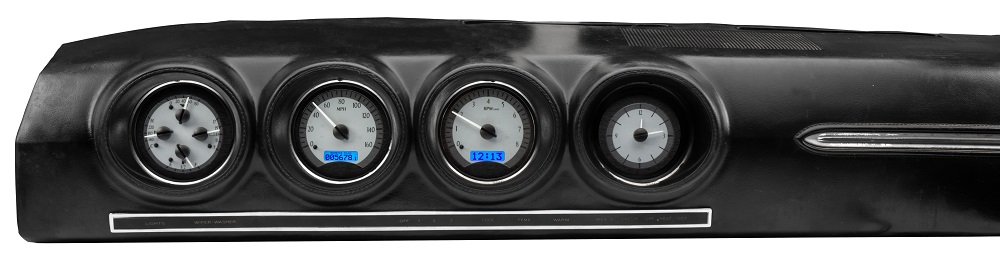

VHX-68F-TOR-S-B Silver Alloy Style Blue Backlighting Bezel Not included

VHX-68F-TOR-S-B Silver Alloy Style Blue Backlighting

At Night:

VHX-68F-TOR Blue At Night

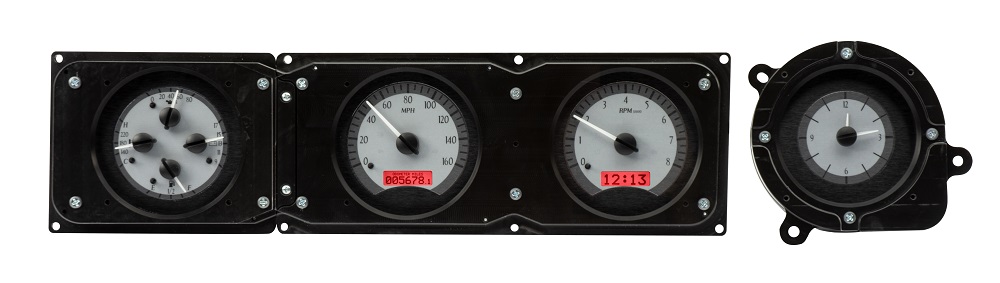

VHX-68F-TOR with SILVER ALLOY style and RED backlighting:

VHX-68F-TOR-S-R Silver Alloy Style Red Backlighting

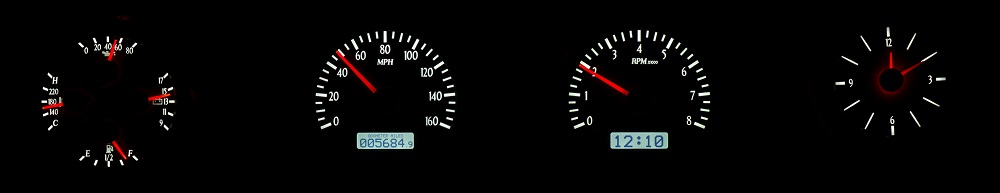

At Night:

VHX-68F-TOR Red At Night

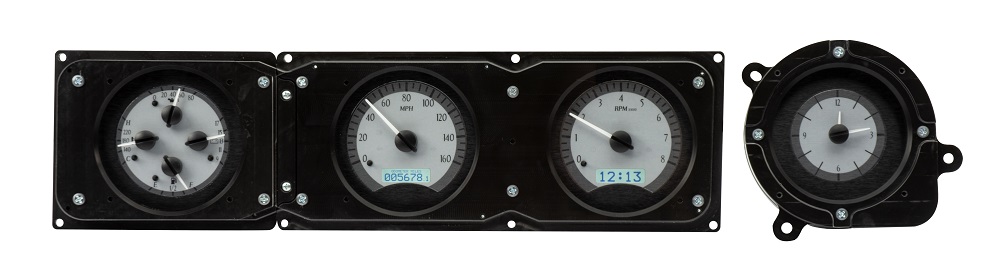

VHX-68F-TOR with SILVER ALLOY style and WHITE backlighting:

VHX-68F-TOR-S-W Silver Alloy Style White Backlighting

At Night:

VHX-68F-TOR White At Night

VHX-68F-TOR with BLACK ALLOY style and BLUE backlighting:

VHX-68F-TOR-K-B Black Alloy Style Blue Backlighting

At Night:

VHX-68F-TOR Blue At Night

VHX-68F-TOR with BLACK ALLOY style and RED backlighting:

VHX-68F-TOR-K-R Black Alloy Style Red Backlighting Bezel is NOT included

VHX-68F-TOR-K-R Black Alloy Style Red Backlighting

At Night:

VHX-68F-TOR Red At Night

VHX-68F-TOR with BLACK ALLOY style and WHITE backlighting:

VHX-68F-TOR-K-W Black Alloy Style White Backlighting

At Night:

VHX-68F-TOR-K-W White At Night

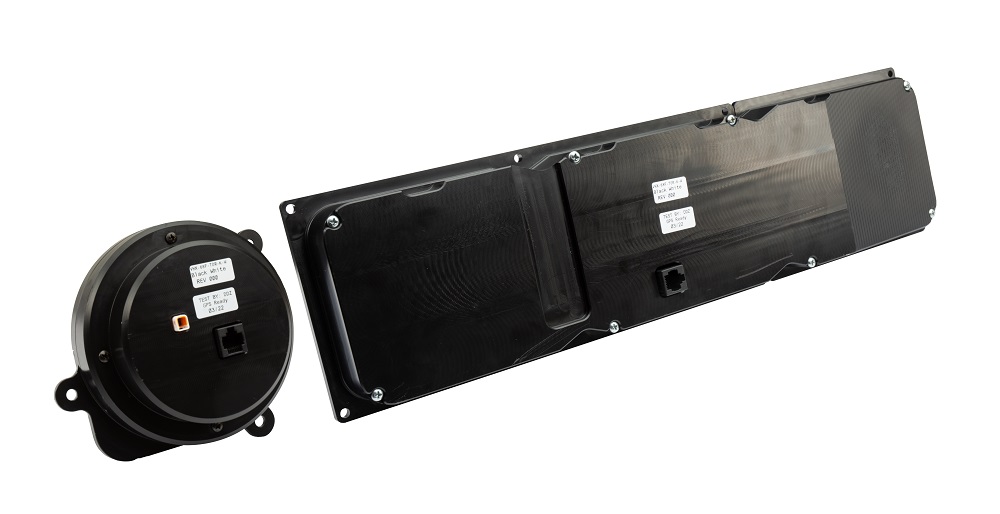

Back of System:

VHX-68F-TOR Back of System




Limited Lifetime Warranty through manufacturer, see installation manual for details
