Dakota Digital 1969 Chevy Chevelle/ El Camino / Malibu VHX Instruments with Analog Clock Gauge - VHX-69C-CVA
The new VHX Systems fit directly into the stock instrument bezel of a 1969 Chevy Chevelle, Malibu and El Camino without modification, adding a wealth of features to this iconic vehicle. This system comes with an analog clock gauge (traditional style).
A prime candidate for today's Restomod builds, the '69 Chevelle has been a favorite among enthusiasts for decades. For those that want it "stock, but not", VHX-69C-CVL fills a stock or reproduction dash bezel (bezel shown in pics is not included) with up-to-date and stylish instrumentation, no cutting required! Stock turn signal locations can be retained.
* Requires the use of the factory bezel. Bezel shown in pic is not included, shown for demonstration purposes only.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Please scroll through the listing for more information and pictures of this system.
MHX-69C-CVAMetric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 8-16 weeks to build due to high demand affecting production.
VHX System Includes:
Analog Gauges
Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Clock Gauge
Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message CenterStandard Displays:
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Performance Meters:
0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Gauges:
Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)
Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

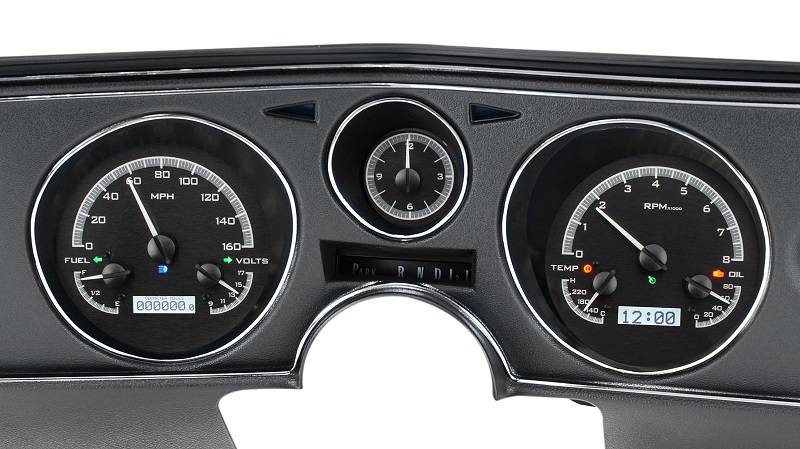

Built-In IndicatorsTurn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
**Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Included Sensors:
Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.
Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Control Box Dimensions - 5.5" x 3.5"x 1"
CalibrationPushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.
VHX-69C-CVA with SILVER ALLOY and BLUE display (shown mounted in bezel, bezel is NOT included):
VHX-69C-CVA with SILVER ALLOY and RED display (shown mounted in bezel, bezel is NOT included):

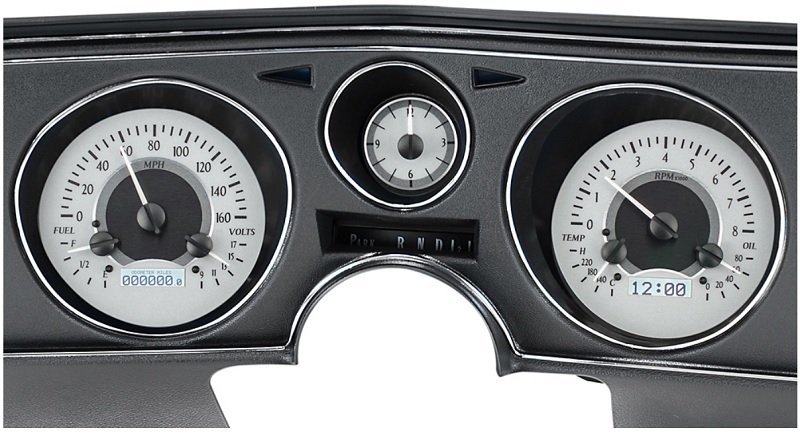

VHX-69C-CVA with SILVER ALLOY style and WHITE display (bezel is NOT included):

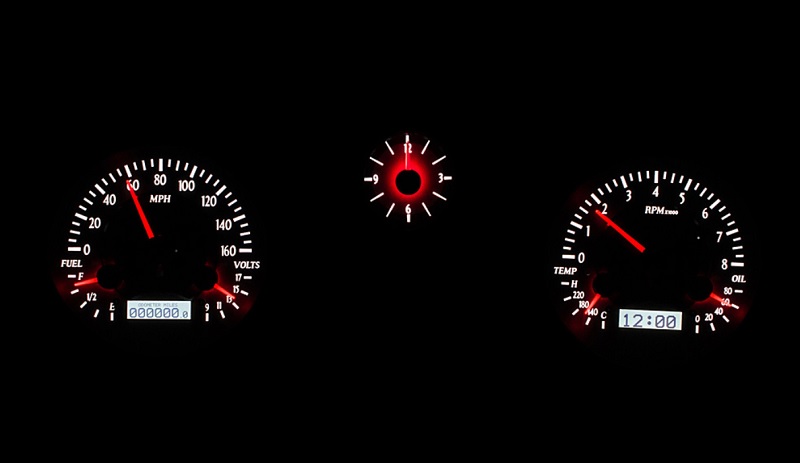

At Night:

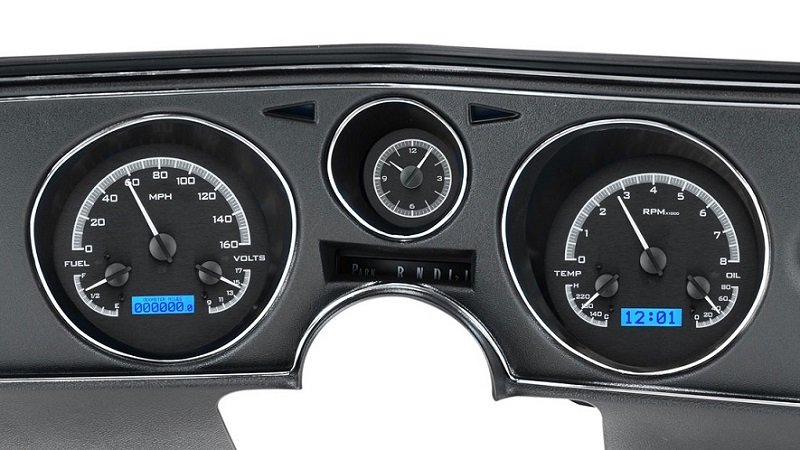

VHX-69C-CVA with BLACK ALLOY style and BLUE display (shown mounted in bezel, bezel is NOT included):

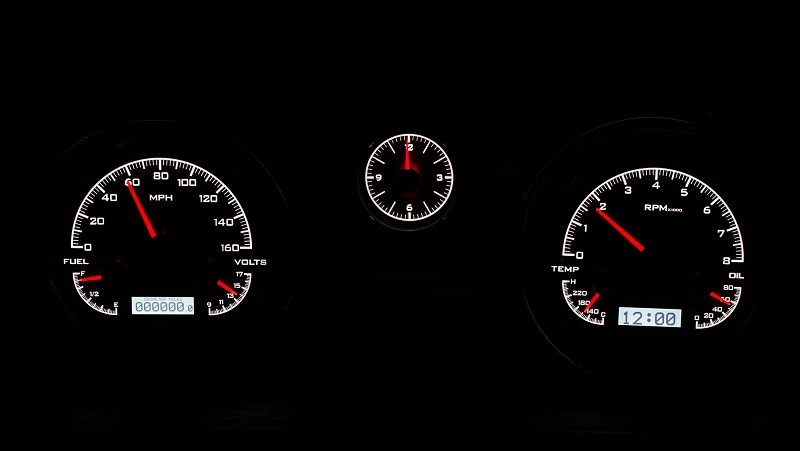

At Night:

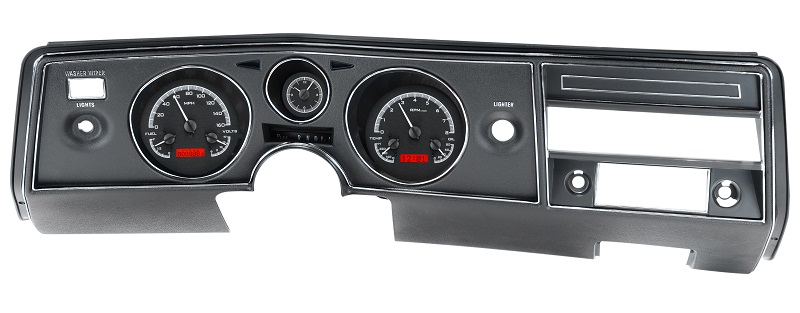

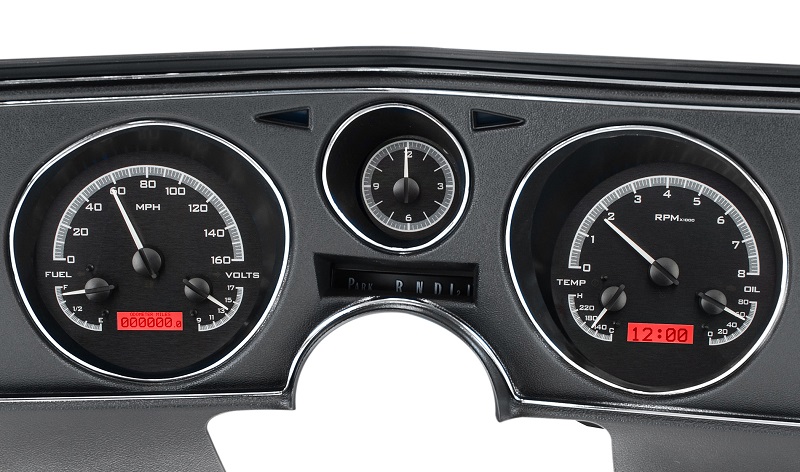

VHX-69C-CVA with BLACK ALLOY style and RED display (shown mounted in bezel, bezel is NOT included):

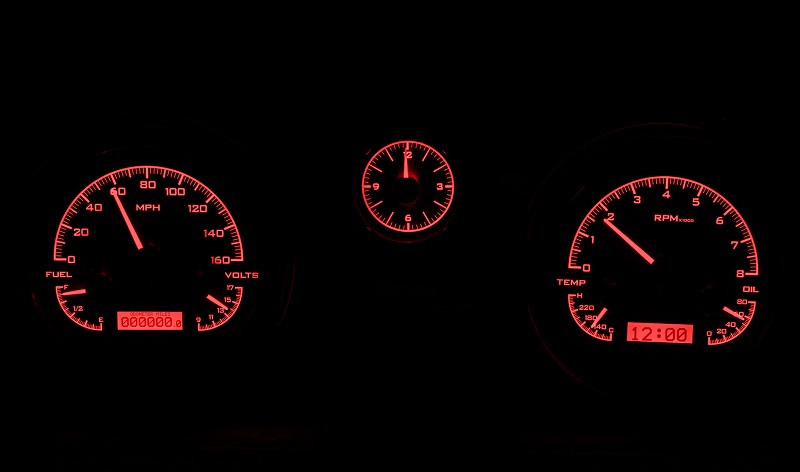

At Night:
VHX-69C-CVA with BLACK ALLOY style and WHITE display (bezel is NOT included):
VHX-69C-CVA with CARBON FIBER style and BLUE display (bezel is NOT included):

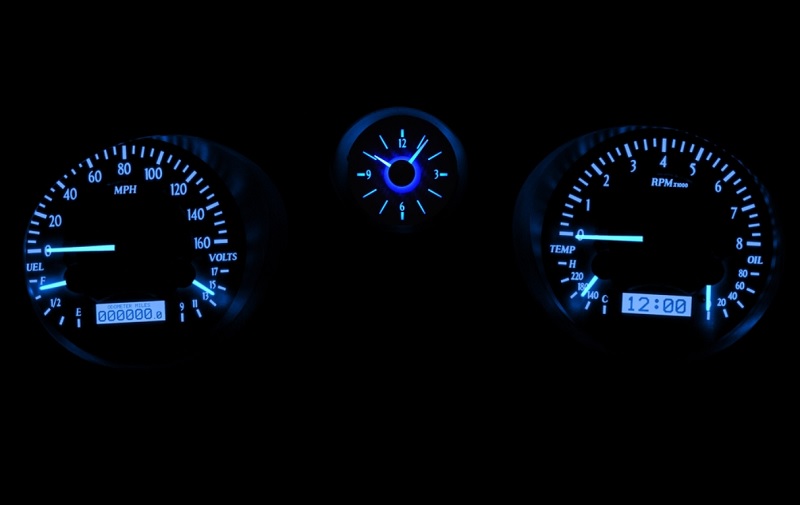

At Night:

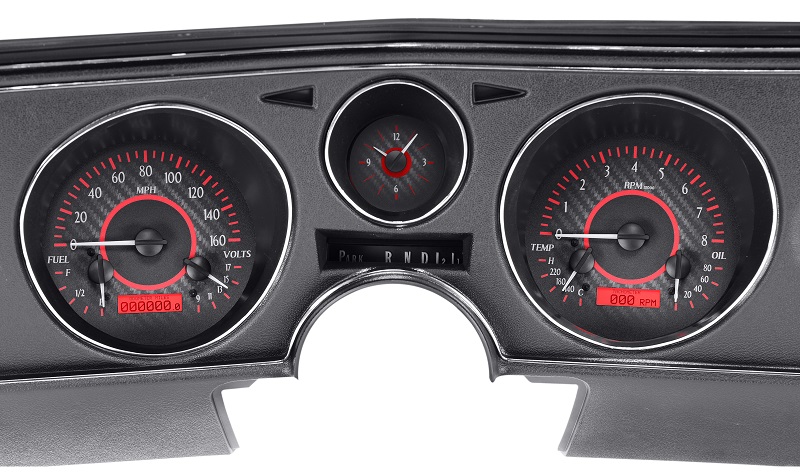

VHX-69C-CVA with CARBON FIBER style and RED display (bezel is NOT included):
At Night:

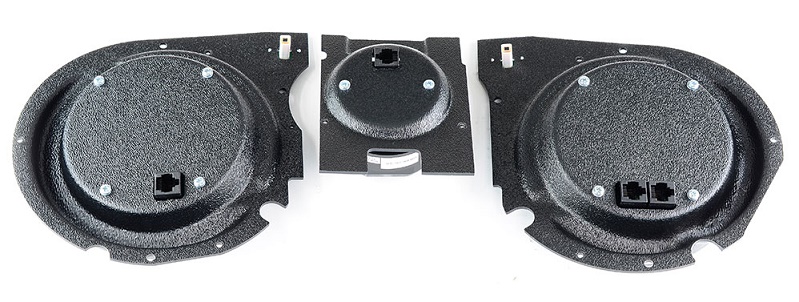

BACK:
Also available with a digital clock instead of the analog one, look in our store for part number VHX-69C-CVL (sold separately, not included in this listing):
