Looks like a stock cluster with just three gauges, but in fact there are six readings! The tach, oil pressure and voltage are made up of hidden LED bars, only visible when the key is on. A large TFT message center is front and center while the rest of the system looks straight out of 1957. Fits into your original cast housing (housing is NOT included); chrome rings available separately, as is the matching RLC-57C clock (RLC-57C is NOT included, available for purchase separately in our store).

*Gauge Pod and Chrome inserts not included, shown for visual/ presentation purposes.
System use OEM or reproduction style gauge pod and chrome inserts.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed, or just leave the vintage-looking tumbler odometer on the screen for a totally stock appearance. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Please scroll through the listing below for a more in-depth look at the RTX series and lots more pics!

MTX-57C Metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 12-24 weeks to build. Some systems may take a little longer due to COVID-19 and high demand affecting production.



---

Which extra items that are not included with this kit does Dakota Digital recommend that you consider?

Because Dakota Digital includes the required sensors for the Oil Pressure, Water Temperature and Speedometer with all its instrument systems, in many cases no additional parts will be required. However, you may wish to consider the following optional items, available for purchase separately in our store:



GSS-3000 - Universal Gear Position Sensor

All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation.



DIM-1 - Light Dimming Knob

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.



SEN-06-1 - Fuel Level Sensor

Dakota Digital instrument systems are designed to utilize a stock or aftermarket fuel level sensor. If a universal or replacement sensor is desired, the SEN-06-1 is a great choice.



BIM-01-2  - OBD II/ Can Interface Module

The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the instrument system, making installation a breeze.

More info about this system and pics are available below.

---

The following pictures show examples of some of the user selectable backlighting color options. Bezel shown in any pic is NOT included, shown for illustrative purposes only:

Emerald Backlighting:

Fire and Ice Backlighting:

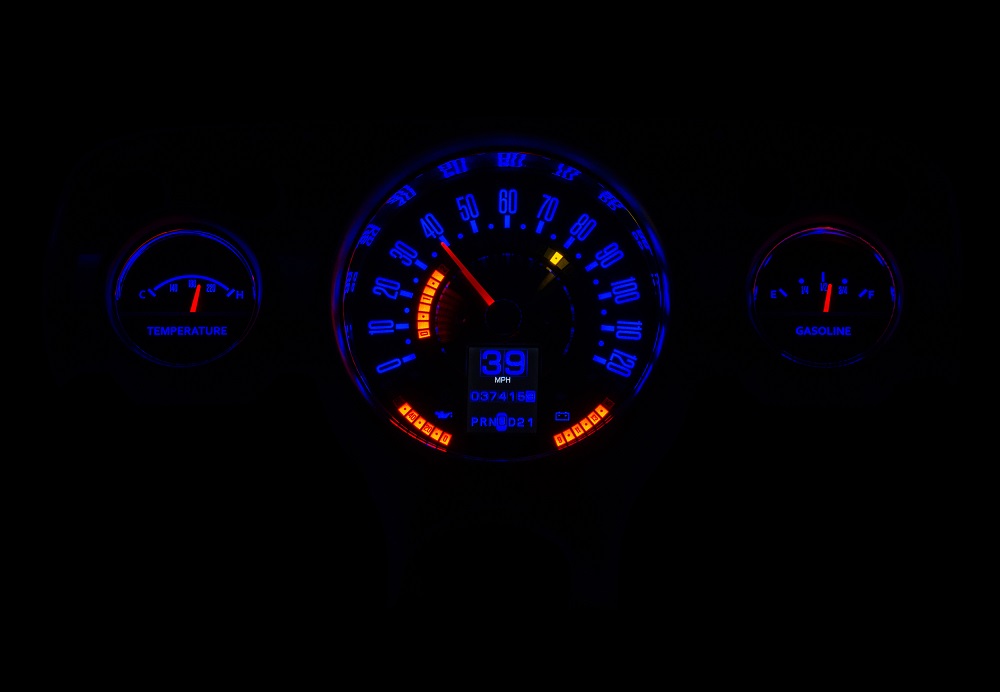

Ice and Fire backlighting:

Incandescent backlighting:

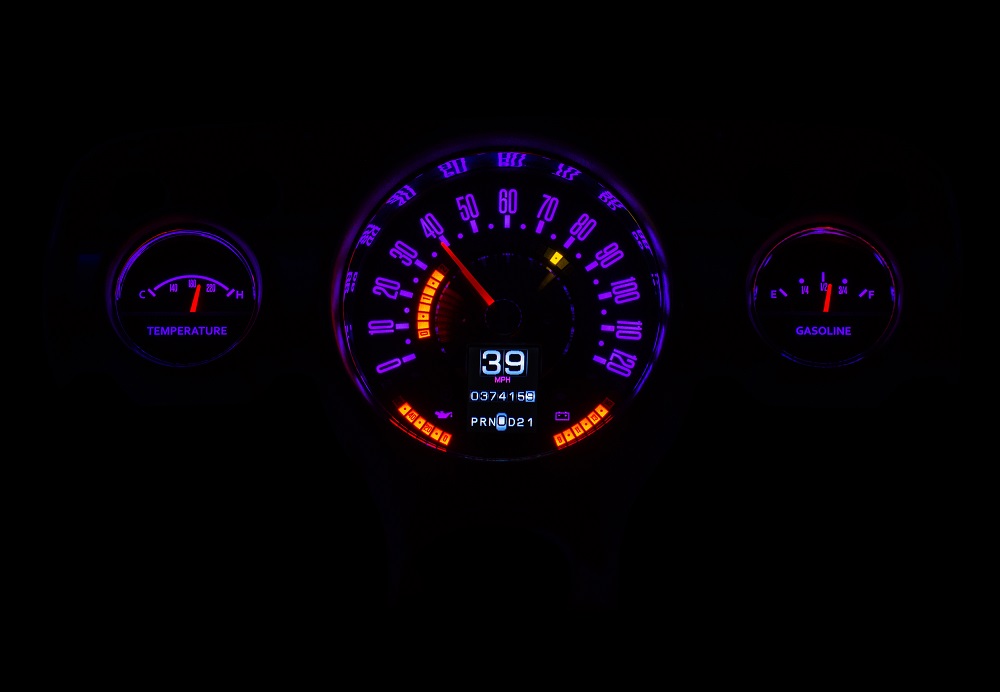

Vivid Orchid backlighting:

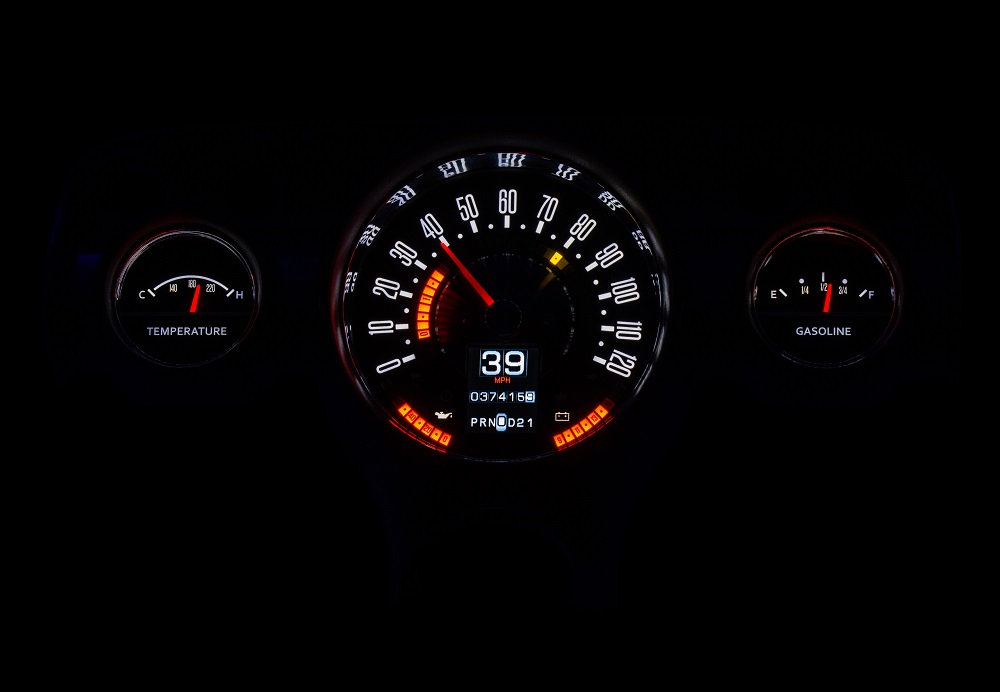

White Hot backlighting:

Wild Aqua backlighting:

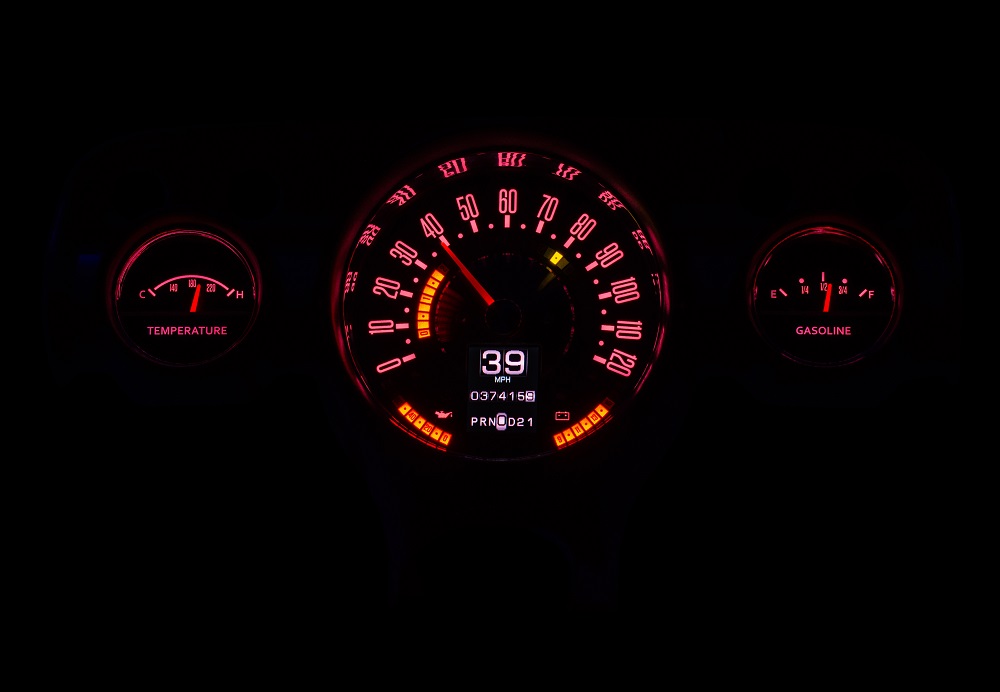

Wild Rose backlighting:

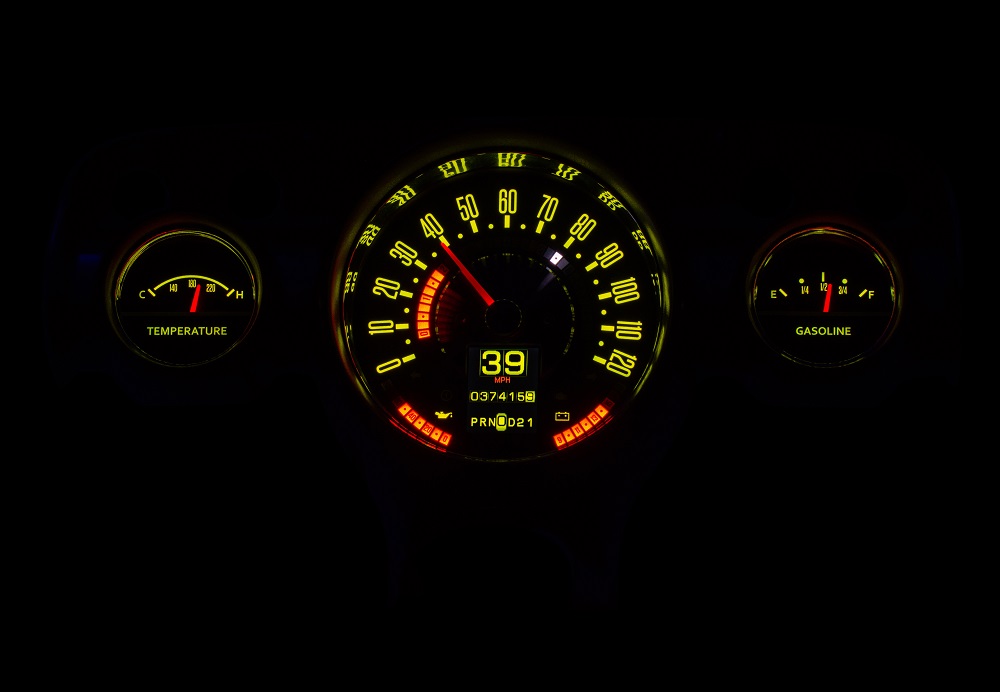

Yellow Flare backlighting:

---

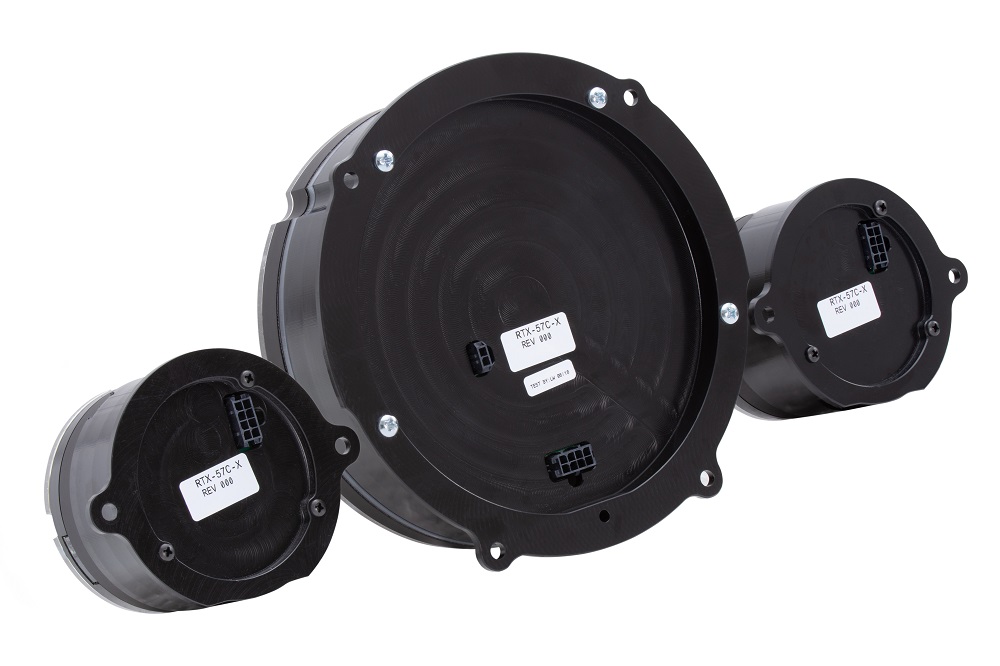

Back of Unit

---

The following items are available for purchase separately in our store (not included with this listing):

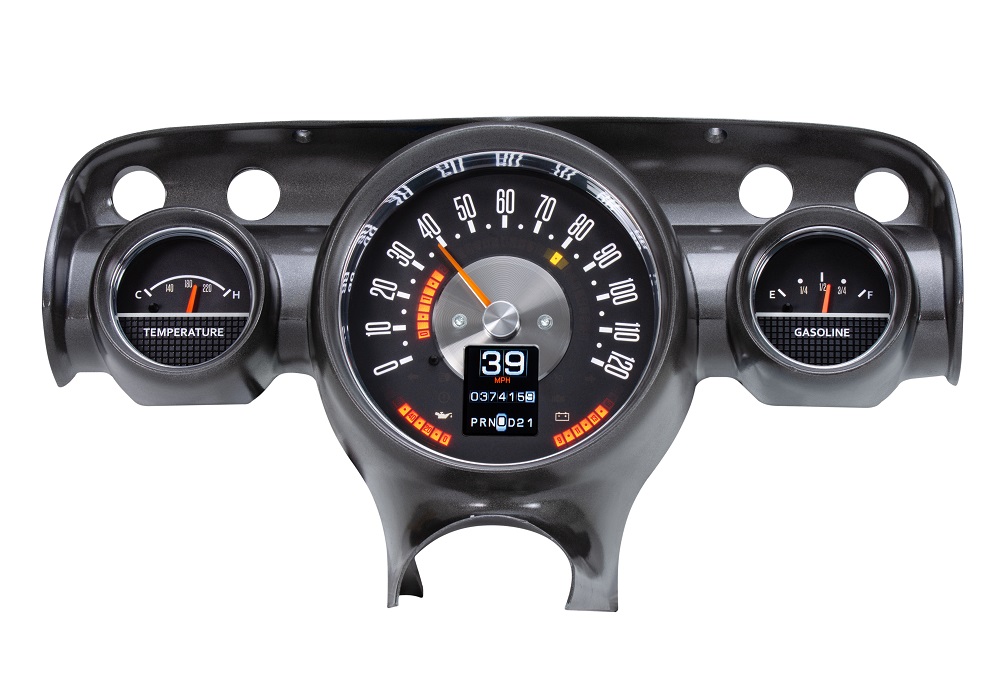

BZL-57C -1957 Chevy reproduction chrome bezels (sold separately)



The reproduction chrome bezels shown in the above pictures are NOT included, but can be purchased separately in our store.

Also Available for purchase separately in our store:



RLC-57C-X - 1957 Chevy Car Clock for RTX Instruments, sold separately:

---

---

---

---
