Dakota Digital Universal 5 Gauge Round Kit Analog Gauge System VHX-1050

Dakota Digital

MSRP: $825.00
$783.75
(You save $41.25 )
(No reviews yet) Write a Review
SKU:
VHX-1050-S-B
Condition:
New
Adding to cart… The item has been added

Dakota Digital Universal 5 Gauge Round Kit VHX Instruments - VHX-1050




VHX-1050  5 gauge round kit.
Includes:

  • Speedometer (with digital Tachometer)
  • Oil Pressure
  • Water Temperature
  • Fuel Level
  • Volts

Dimensions:
Speedometer/digital Tachometer: Cutout 3-3/8"
(3.55" OD).

Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16" (2.225" OD).

Not available as individual gauges.

These 3-3/8” and 2-1/16” housings are industry standard sizes, so they easily fit many aftermarket panels, although offering all of the integration and flexibility of their VHX systems!

The satellite (oil pressure, water temp, voltmeter and fuel level) gauges connect directly to the speedometer with included telephone style cables, making installation quite simple.

MHX-1050 Metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take approximately 8-16 weeks to build. Some systems may take a little longer due to COVID-19 and high demand affecting production.



VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - Digital

Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300
ºF / 40-150ºC displayed in 1ºF/ºC increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color.






VHX-1050 with SILVER ALLOY style and BLUE display:

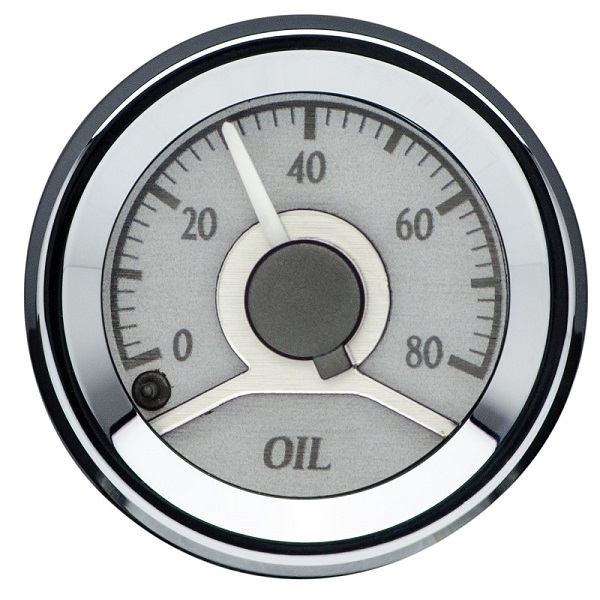

Oil Temp:

Temp:

Volts:

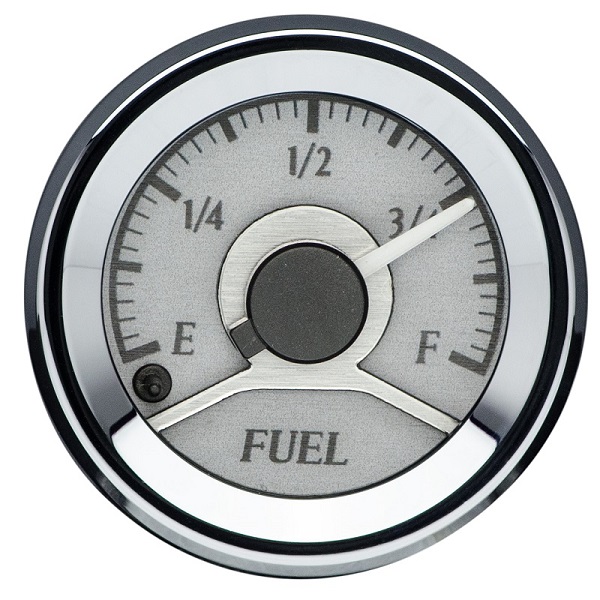

Fuel:

At Night:

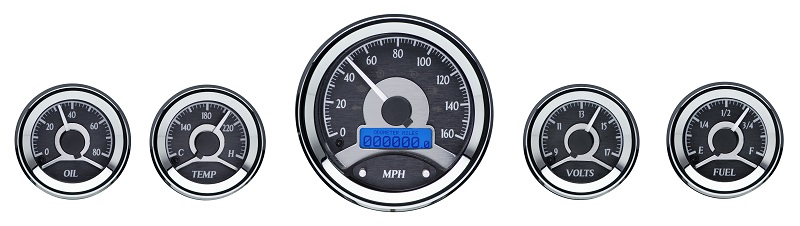

VHX-1050 with BLACK ALLOY style and BLUE display:

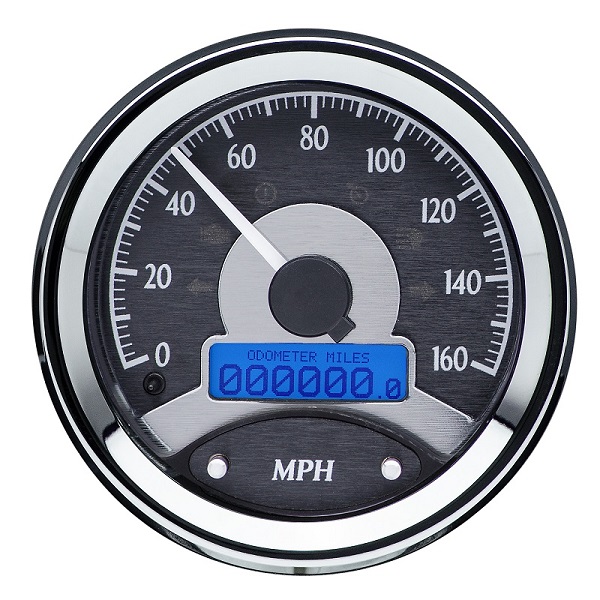

MPH gauge up close (BLACK ALLOY style and BLUE display):

VOLTS gauge up close (BLACK ALLOY style):

Oil:

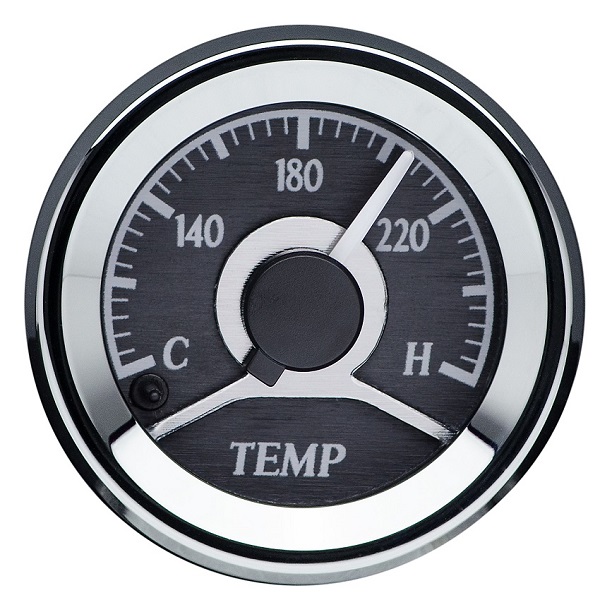

Temp:

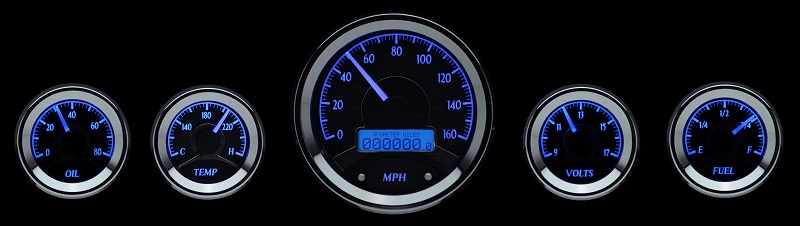

Blue At Night:

Red Display At Night:

White At Night:

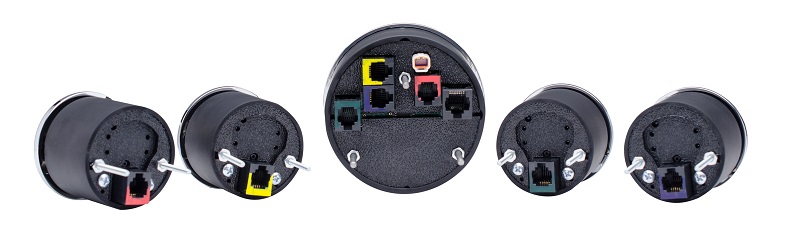

Back of Unit:




Limited Lifetime Warranty through manufacturer, see installation manual for details
